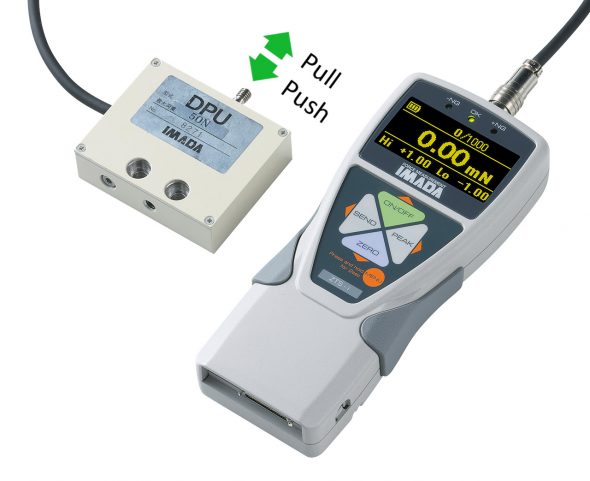

Force Gauge ZTS-DPU

12 measuring ranges available
from 0 - 2 N up to 0 - 20 kN

Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry, which need a fast measuring frequency

High quality force measuring unit with interface (RS-232, USB, analog and Digimatic) and memory This device has a fast measuring frequency for exact acquisition of peak values

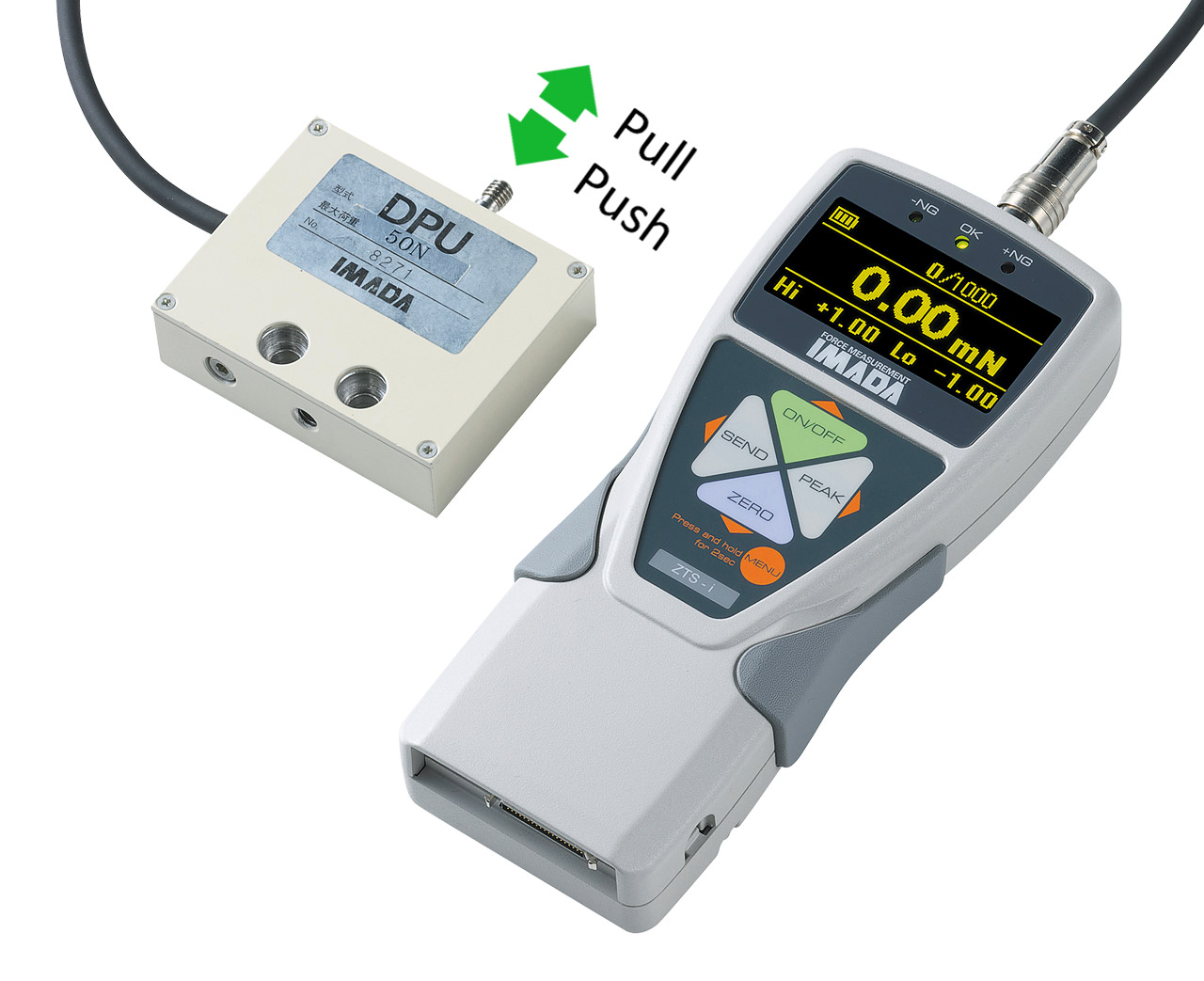

Force gauge seperate remote load sensor

CE mark

Special Features


2 operation modes:
real time – display the actual tension or compression force
peak force – to measure the peak force during a test

Force gauge ZTS-DPU with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values

Display update time 10 times/sec

Easy to read display (OLED)

The header and footer of the display can be customized, as well as switched on and off

Programmable high/low set-points for go/no-go testing:
with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs

Storage of 1000 values, which can be recalled:
– on the display
– data transfer to a PC
– for printing with report

Output signal:
– RS-232 C for connecting to a PC
– USB
– analog ±2 V DC
– Mitutoyo Digimatic e. g. to print the readings on a printer

Display can be reversed for inverted use; e. g. on vertical test stand

»Zero Set« to zero the gauge in all operating positions

Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX

Force gauge ZTS-DPU with user switchable units: N, kgf (gf) and lbf (ozf)

Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)

Manufacturers inspection certificate is included

Standard Features


Force gauge ZTS-DPU for exact measuring with an accuracy of ±0.2 % full scale

Approx. 200 % overload protection

For hand-held use or mounting on test stand

Ergonomically-designed, rugged die-cast aluminium housing

Non-slip rubber grip

Operates on rechargeable battery and/or AC adapter

Full set of accessories included

Available Models

ModelCapacity NResolutionCapacity gf; kgfCapacity ozf; lbfMeasuring shaft
ZTS-2-DPU0 – 2.000 N0.001 N0 – 200.0 gf0 – 7.00 ozfM6
ZTS-5-DPU0 – 5.000 N0.001 N0 – 500.0 gf0 – 18.00 ozfM6
ZTS-20-DPU0 – 20.00 N0.01 N0 – 2.000 kgf0 – 4.400 lbfM6
ZTS-50-DPU0 – 50.00 N0.01 N0 – 5.000 kgf0 – 11.00 lbfM6
ZTS-100-DPU0 – 100.0 N0.1 N0 – 10.00 kgf0 – 22.00 lbfM6
ZTS-200-DPU0 – 200.0 N0.1 N0 – 20.00 kgf0 – 44.00 lbfM6
ZTS-500-DPU0 – 500.0 N0.1 N0 – 50.00 kgf0 – 110.0 lbfM6
ZTS-1000-DPU0 – 1000 N1 N0 – 100.0 kgf0 – 220.0 lbfM10
ZTS-2000-DPU0 – 2000 N1 N0 – 200.0 kgf0 – 440.0 lbfM10
ZTS-5000-DPU0 – 5000 N1 N0 – 500.0 kgf0 – 1100.0 lbfM10
ZTS-10k-DPU*0 – 10 kN10 N0 – 1000.0 kgf0 – 2200.0 lbfM18 female screw
ZTS-20k-DPU*0 – 20 kN10 N0 – 2000.0 kgf0 – 4400.0 lbfM18 female screw

*Note:
No attachment is included with model of measuring range 10 kN and higher. These models do not have measuring shaft, but there is a female thread in place of a measuring shaft.

verschiedene Klemmen für Kraftmesser und PrüfständeDepending on the application we have a wide range of clamping tools and clamps for force gauge ZTS-DPU in our program.

Find further information at clamps and testing devices

Prüfstände HV-500N und EMX-1000NWe have a wide range of test stands, to assure consistent, identical measuring conditions with force gauge ZTS-DPU.

Find further information at test stands

Specifications

Measuring principle:Bidirectional force sensor with strain gauge
Accuracy:±0.2 % full scale ±1 digit
Measuring units:N, kgf (gf), lbf (ozf) selectable
Display:OLED, 4 digit
Sampling rate:2000 times/sec.
Overload capacity:Approx. 200 % full scale,
symbol flashes at 110 % full scale
Display update rate:10 times/sec.
Plug gauge:Measuring range up to 500 N: M6 male thread
Measuring range 1000 N up to 5000 N: M10 male thread
Measuring range 10 kN and 20 kN:M18 female thread
Memory:Internal memory for max. 1000 values
recallable peak – compression/tension
Setpoints:Programmable Max/Min setpoint with color-coded indicators in the LED display
Output signal setpoints:Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)
Output signal:RS-232 (8, 1, N, 19200),
analog ±2 V DC,
USB
Digimatic
Temperature range:0 – 40 °C
Air humidity:20 – 80 % RH, max.
Power supply:Rechargeable NiMH batteries (approx. 8 h continuous use,
approx. 8 h charging time) and/or 100…240 V AC adapter
and two adapters (EU/USA)
Housing material:Die-cast aluminium
Dimensions:191 x 75 x 34 mm (LxWxH)
Load cell:See dimensions
Weight, net (gross):approx. 490 g

Specifications subject to change without notice!

Standard Accessories

  1. ZT Logger

    Software ZT Logger with USB cableUSB cable approx. 1.5 m long, CD-ROM with USB-driver and software “ZT-Logger” for data transfer


  2. AC Adapter

    AC-adapter ADW-6010AC adapter for 100 – 240 V AC
    Order number: ADW-6010


  3. Inspection Certificate

    Inspection CertificateDelivery includes a manufacturers inspection certificate free of charge


Standard Attachment up to 500 N

  1. Small Hook

    small hookAluminium, M6, measuring range up to 100 N
    Order number: A-1
    Steel, M6, measuring range from 100 N to 500 N
    Order number: S-1


  2. Flat Tip

    Flat TipAluminium, M6, Ø 13 mm, measuring range up to 100 N
    Order number: A-2
    Steel, M6, Ø 16 mm, measuring range from 100 N to 1000 N
    Order number: S-2


  3. Conical Tip

    Conical TipAluminium, M6, 85°, measuring range up to 100 N
    Order number: A-3
    Steel, M6, 85°, measuring range from 100 to 1000 N
    Order number: S-3


  4. Chisel Tip

    Chisel TipAluminium, M6, 85°, measuring range up to 100 N
    Order number: A-4
    Steel, M6, 85°, measuring range from 100 N to 1000 N
    Order number: S-4


  5. Notched Tip

    Notched TipAluminium, M6, 90°, measuring range up to 100 N
    Order number: A-5
    Steel, M6, 90°, measuring range from 100 N to 1000 N
    Order number: S-5


  6. Extension Shaft

    Extension ShaftAluminium, M6, 80 mm, measuring range up to 100 N
    Order number: A-6
    Steel, M6, 100 mm, measuring range from 100 N to 1000 N
    Order number: S-6


  7. Large Hook

    Large HookAluminium, M6, measuring range up to 100 N
    Order number: A-7
    Steel, M6, measuring range from 100 N to 1000 N
    Order numbr: S-7


  8. Y-Hook

    Y-HookAluminium, M6, measuring range up to 100 N
    Order number: A-8
    Steel, M6, measuring range from 100 N to 1000 N
    Order number: S-8


Standard Attachment 1000 N up to 5000 N

  1. Small Hook

    Small HookSteel, M10
    Order number: B-1


  2. Flat Tip

    Flat TipSteel, M10, Ø 23 mm
    Order number: B-2


  3. Conical Tip

    Conical TipSteel, M10, 85°
    Order number: B-3


  4. Chisel Tip

    Chisel TipSteel, M10, 85°
    Order number: B-4


  5. Notched Tip

    Notched TipSteel, M10, 85°
    Order number: B-5


  6. Extension Shaft

    Extension shaftSteel, M10, 100 mm long
    Order number: B-6


Accessories (optional)

  1. Force Recorder Light

    Force Recorder Light

    Software for data acquisition by USB output
    – Force-time graph
    – Force gauge function setting
    – Data storage as CSV file
    Requirements: Microsoft Win 7/8/8.1/10
    Order number: SW-21


  2. Force Recorder Standard

    Force Recorder Standard

    Additional functions in comparison to Force Recorder Light:
    5 graphs at maximum can be displayed in a table
    Requirements: Microsoft Win 7/8/8.1/10
    Order number: SW-22


  3. Force Logger Plus

    Force Logger Plus

    Software for Data acquisition by USB output:
    – data acquisition of 4 force gauges simultaneously
    – force gauge function setting
    – data storage as CSV file
    Requirements: Microsoft Win 7/8/8.1/10
    Order number: SW-13


  4. Printer

    Printer DP-1 VRPrinter to print stored values using Mitutoyo Digimatic output.
    Order number: DP-1 VR

    For connecting the cable CB-308 is required.


  5. Paper Roll

    Paper roll for printer DP-1 VRPaper roll for Printer DP-1 VR, 1 Set = 5 pieces
    Order number: DP-P


  6. Clamping Tools

    Different clamping toolsDepending on the application we have a lot of clamping tools and clamps for force gauge ZTS-DPU in our programm.

    Find further information at clamps and testing devices


  7. Accumulator

    Accumulator DP-308Nickel metal hydride accumulator, 2-pole connector
    3.6 V, 1300 mAh
    Order number: 40018I


  8. Calibration Certificate

    Calibration ReportCalibration certificate with calibration report is optional available.


Connecting Cables (optional)

  1. Connecting Cable analog

    Connecting cable for alalog output CB-108Connecting cable for analog output, for connection to a line recorder.
    Length approx. 3 m
    Order number: CB-108


  2. Connecting Cable RS-232

    Connecting cable for CB-208Connecting cable for RS-232 output with sub D 9 female, for connection to PC.
    Length approx. 3 m
    Order number: CB-208


  3. Connecting Cable Mitutoyo

    Connecting cable for Digimatic outputConnecting cable for Mitutoyo Digimatic output, for connection to Mitutoyo printer DP-1 VR.
    Length approx. 3 m
    Order number: CB-308


  4. Connecting Cable MX

    Connecting cable CB-508Connecting cable for force gauge ZTS-DPU with test stand (Series MX) to stop feed at Fmax or overload (force control).
    Length approx. 1.5 m
    Order number: CB-508


  5. Connecting Cable MX2, EMX

    Connecting cable CB-518 / CB-728Connecting cable for force gauge ZTS-DPU with test stand (Series MX2 and EMX) to stop feed at Fmax or overload (force control).
    Length approx. 1.5 m
    Order Number: CB-518


  6. Connecting Cable MX2-FA

    Connecting cable CB-718Connecting cable for force gauge ZTS-DPU with test stand (series MX2-FA) to enable force-displacement measurement.
    Length approx. 1.5 m
    Order number: CB-718


  7. Connecting Cable EMX-FA

    Connecting cable CB-518 / CB-728Connecting cable for force gauge ZTS-DPU with test stand (EMX-FA) to enable force-displacement measurement.
    Length approx. 1.5 m
    Order number: CB-728


  8. Connecting Cable trigger input

    Conecting cable for trigger input CB-808Connecting cable for trigger input (input signal from an external device e. g. electronic switch to stop the measurement)
    Order number: CB-808


  9. Connecting Cable with open ends

    Connecting cable with open ends CB-908Connecting cable with open ends (37-pin) for all available output signals to connect an unique device.
    Order number: CB-908


Dimensions

Here you can find the dimensions of force gauge ZTS-DPU for download.
Delivery Includes

Scope of delivery force gauge ZTS-DPUIndicator and separate force sensor with carrying case, standard accessories (depending on model),
AC adapter, USB connecting cable, 1 CD-ROM with USB-driver and simple software for data transfer,
manufacturers inspection certificate, operating instruction in German or English (as requested).
From tension range 10 kN and higher, there are no accessories.
