2 operation modes:
real time – display the actual tension or compression force
peak force – to measure the peak force during a test

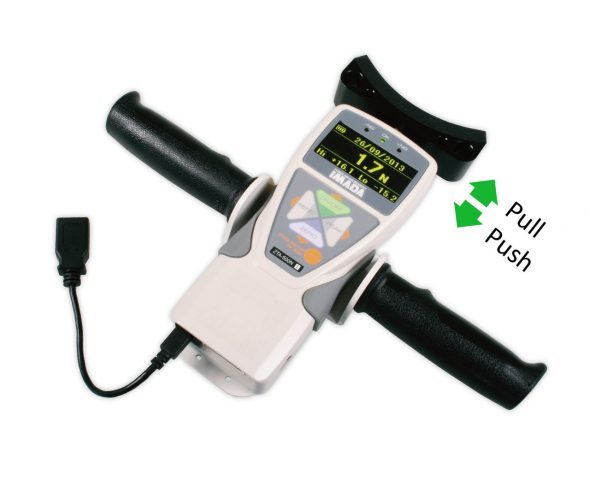

Force gauge RZTA-1000N with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values
Display update time 16 times/sec
Easy to read display (OLED)
The header and footer of the display can be customized, as well as switched on and off
Programmable high/low set-points for go/no-go testing:
with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs
Storage of 1000 values, which can be recalled:
– on the display
– data transfer to a PC
– for printing with report
Output signal:
– RS-232 for connecting to a PC
– USB
– analog ±2 V DC
Display can be reversed for inverted use
»Zero Set« to zero the gauge in all operating positions
Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX
Force gauge RZTA-1000N with user switchable units: N, kgf (gf) und lbf (ozf)
Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)
Readings can be saved on a USB flash drive (Not included in delivery).
2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
Indication of two peak values per measurement.
Manufacturers inspection certificate is included
