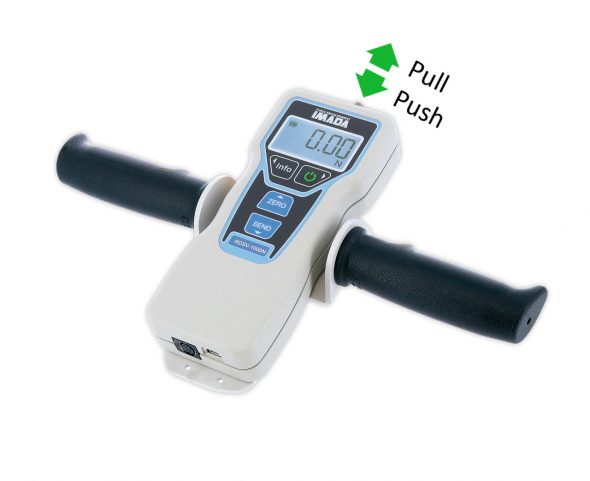

Force Gauge RDSV-1000N

Measuring Range 0 - 1000 N

Electronic force gauge for determination of muscle strength, useable for numerous applications in rehabilitation and physical therapy

Force measuring device with USB and RS-232 interface

Low cost standard model for compression/tension force

CE mark
Categories: ,
Print page Print page

Special Features


3 operation modes:
real time – display the actual tension or compression force
peak force – to measure the peak force during a test
continuity peak mode – to measure the peak force for each single measurement

Force gauge RDSV-1000N with high sampling rate of 1000 times/sec to measure the peak force

Display update 8 times/sec

Storage of 1000 values, which can be recalled:
– on the display
– data transfer to a PC

Output signal:
– USB
– RS-232

Force gauge RDSV-1000 with user switchable units: N, gf (kgf) and ozf (lbf)

Programmable high/low set-points for go/no-go testing:
Display: good (OK), underrun/exceeding (OK is not displayed)

»Zero Set« to zero the gauge in all operating positions. Alarm signal, if the actual position differs to much from the calibration position

Mechanical stopper to prevent sensor-breakdown

With the optional software Force Logger Plus up to 4 sensors can be connected simultaneously for data processing to a PC

Manufacturers calibration report is included

Display can be reversed for inverted use; e. g. on vertical test stand

Standard Features


Force measuring device for exact measuring with an accuracy of ±0.2 % full scale ±1 digit

Overload protection:
200 % full scale

For hand-held use or mounting on test stand (mounting thread 4 x M4 in back)

Easy to operate

Force gauge RDSV-1000N with easy to read LCD display

Ergonomically-designed, rugged die-cast aluminium housing

Operates on rechargeable battery (NiMH) and/or AC adapter

Full set of accessories included

Can be used for various parts of body and items on different measurement condition, by changing the attachment

Available models

ModelMeasuring RangeResolutionInterfaces
RDSV-1000N0 – 1000 N1 NUSB and RS-232
alternative
RZTA-1000N0 – 1000 N1 NUSB, RS-232, Digimatic and analogmore
RFB-750N0 – 750 N7.5 Nnonemore
Specifications

Measuring principle:Bidirectional force sensor with strain gauge
Accuracy:±0.2 % Full Scale ±1 digit
Measuring units:N, gf (kgf), lbf (ozf)
Display:LCD, 4 digits
Overload capacity:200 % full scale,
Alarm signal at 90 % full scale,
Alarm signal and flashing display at 110 % full scale
Display update rate:8 times/sec.
Plug gauge:M6 male thread
Memory:Internal memory for 1000 readings
Sampling rate:1000 times/sec
Zero adjustment:10 % full scale
A/D converter:16 bit
Output signal:USB,
RS-232 (8, 1, N, 19200),
Temperature range:0 – 40 °C
Air humidity:20 – 80 % RH
Low battery indicator:Display flashes
Power supply:Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light,
approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.
Mounting threads
for test stand:		4 x M4, Depth 8 mm
Housing material:Die-cast aluminium
Dimensions:
Handle:		181 x 72 x 32 mm (LxWxH)
144 x 290 x 41 (LxWxH)
Weight, net (gross):
Handle:		Approx. 460 g (2500 g)
approx. 600 g

Specifications subject to change without notice!

Standard Accessories

  1. FOH-1 - Handle

    Handle FOH-1For easy use the force gauge RDS-1000N can be equipped with a handle. Therefore especially higher forces can be measured more easily.
    Order number: FOH-1


  2. MED-R80 - Curved Pad

    Curved PadApplicable for measuring arms and legs.
    Working face 100 x 25 mm, Radius 80 mm
    Order number: MED-R80


  3. MED-100-25 - Rectangular Pad

    Rectangular PadApplicable for measuring arms and legs.
    Working face 100 x 25 mm
    Order number: MED-100-25


  4. MED-25-25 - Square Pad

    Applicable for measuring the tongue.
    Working face 25 x 25 mm
    Order number: MED-25-25


  5. MED-D80 - Circular Pad

    Circular PadApplicable for measuring the back.
    Working face Ø 80 mm
    Order number: MED-D80


  6. S-7 - Large Hook

    Large HookApplicable for doors, carts, wagons and so on.
    Order number: S-7


  7. S-8 - Y-Hook

    Y-HookApplicable for doors, carts, wagons and so on.
    Order number: S-8


  8. ADU-230 - AC Adapter

    AC Adapter ADS-230For 100 – 240 V AC
    Order number: ADU-230


  9. Inspection Certificate

    Inspection CertificateDelivery includes a manufacturers inspection certificate free of charge

    Inspection Certificate


Accessories (optional)

  1. SW12 - Z-LINK4

    Software ZLink4

    ZLINK4 Info (PDF)

    Software for Data acquisition by USB output:
    – force-time graphs
    – determine time period for recording
    – display the actual reading
    – sampling rate 50 readings per second
    – storage of all measured values as CSV,
    Requirements: Microsoft Windows 8.1/10/11
    Order number: SW-12


  2. 40016I - Accumulator

    Accumulator for force gauge DST and force gauge DSVNickel metal hydride accumulator, 2-pole connector
    4.8 V, 800 mAh
    Order number: 40016I


  3. Calibration Certificate

    KalibrierberichtCalibration certificate with calibration report is optional available.


Dimensions

Dimensions of force gauge RDSV-1000N for download.
Drawing (PDF)
Delivery Includes

Scope of delivery force gauge RDSV-1000NForce gauge RDSV-1000N with carrying case, 6 inserts, handle, AC-adapter, manufacturers inspection certificate and operation instruction in English
