real time – display the actual tension or compression force
peak mode – to measure the peak force during a test (memory pointer)
Analog force gauge for determination of muscle strength, useable for numerous applications in rehabilitation and physical therapy
Low cost force measuring device for a wide variety of applications accuracy ±0.3 % F.S.
The most popular force gauge
Displacement: | 10 mm |
Accuracy: | ±0.3 % full scale |
Plug gauge: | M6 male thread |
Temperature range: | 5 – 45 °C |
Air humidity: | 85 % RH, max. |
Housing material: | Die-cast aluminium |
Dimensions: Handle: | 235 x 65 x 50 mm (LxWxH) 144 x 290 x 41 (LxWxH) |
Weight, net (gross): Handle: | Approx. 530 g (2500 g) approx. 600 g |
Specifications subject to change without notice!

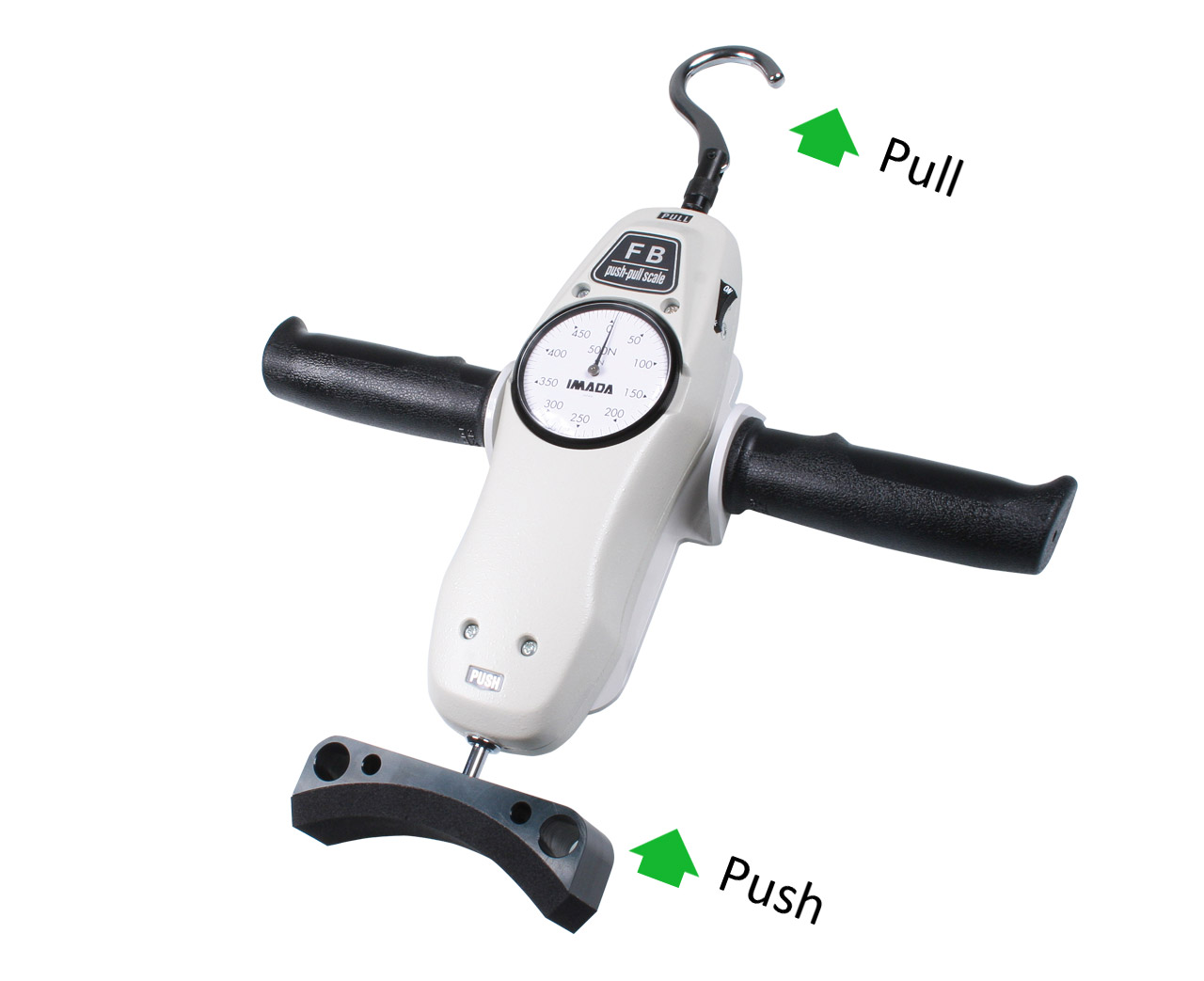

For easy use the force gauge RFB-750N can be equipped with a handle. Therefore especially higher forces can be measured easily.
Order number: FOH-1
Applicable for measuring arms and legs.
Working face 100 x 25 mm, Radius 80 mm
Order number: MED-R80
Applicable for measuring arms and legs.
Working face 100 x 25 mm
Order number: MED-100-25
Applicable for measuring the tongue.
Working face 25 x 25 mm
Order number: MED-25-25
Applicable for measuring the back.
Working face Ø 80 mm
Order number: MED-D80
Applicable for doors, carts, wagons and so on.
Order number: S-7
Applicable for doors, carts, wagons and so on.
Order number: S-8
