Force Gauge ZTA-DPU

12 measuring ranges available
from 0 - 2 N up to 0 - 20 kN

Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry, which need a fast measuring frequency

High quality force measuring unit with interface (RS-232, USB and analog) and memory This device has a fast measuring frequency for exact acquisition of peak values

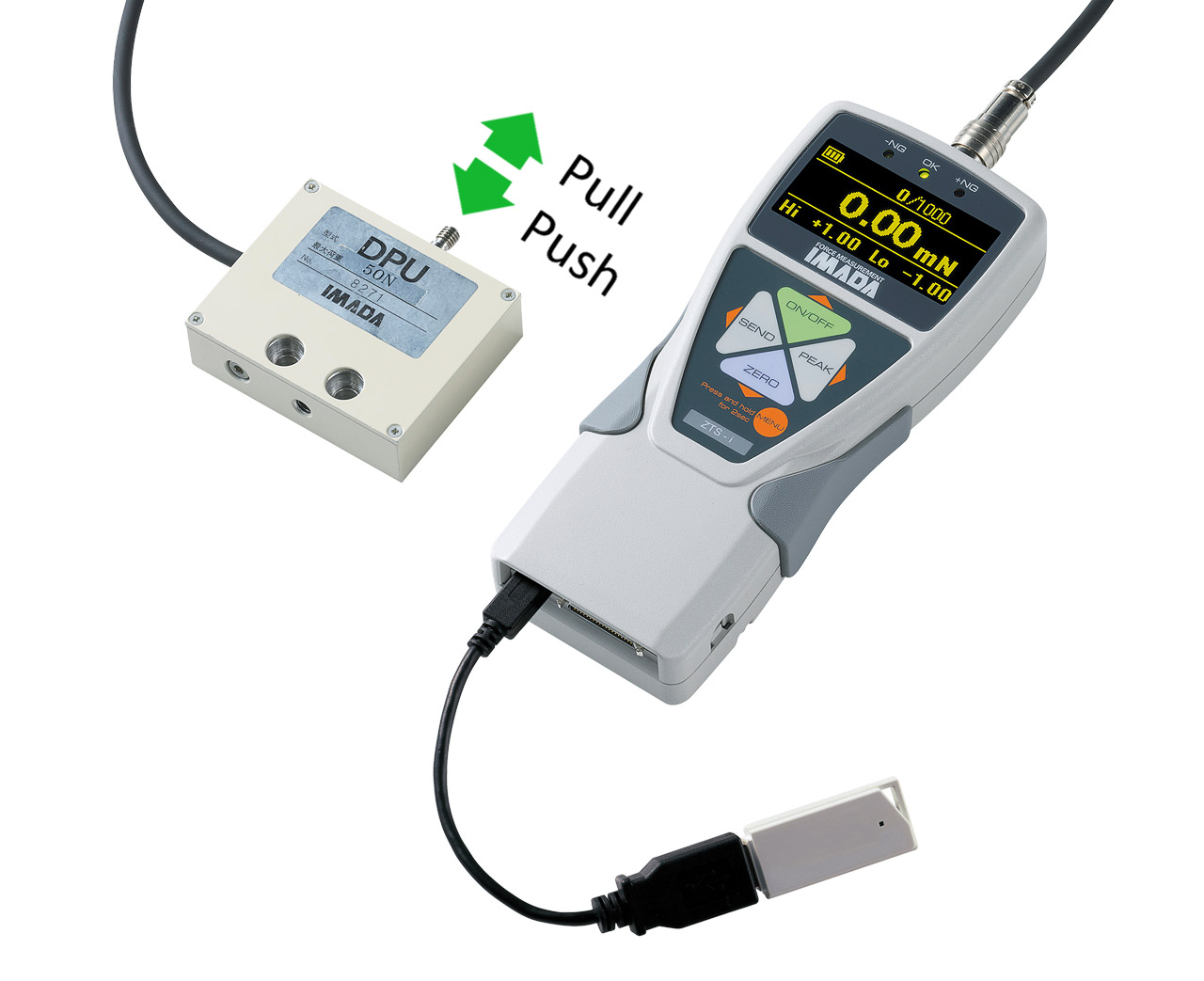

Force gauge with separate remote load sensor

Print page

Special Features

2 operation modes:
real time – display the actual tension or compression force
peak force – to measure the peak force during a test

Force gauge ZTA-DPU with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values

Display update time 16 times/sec

Easy to read display (OLED)

The header and footer of the display can be customized, as well as switched on and off

Programmable high/low set-points for go/no-go testing:
with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs

Storage of 1000 values, which can be recalled:
– on the display
– data transfer to a PC
– for printing with report

Output signal:
– RS-232 for connecting to a PC
– USB
– analog ±2 V DC

Display can be reversed for inverted use; e. g. on vertical test stand

»Zero Set« to zero the gauge in all operating positions

Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX

Force gauge ZTA-DPU with user switchable units: N, kgf (gf) and lbf (ozf)

Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)

Manufacturers inspection certificate is included

Special features in comparison to standard unit ZTS-DPU

In combination with a test stand with linear scale, force-displacement measurements are possible.

Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)

2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording

Indication of two peak values per measurement.

Standard Features

Force gauge ZTA-DPU (for exact measuring with an accuracy of ±0.2 % full scale

Approx. 200 % overload protection

For hand-held use or mounting on test stand

Ergonomically-designed, rugged die-cast aluminium housing

Non-slip rubber grip

Operates on rechargeable battery and/or AC adapter

Full set of accessories included

Available Models

Model	Capacity N	Resolution	Capacity gf; kgf	Capacity ozf; lbf	Measuring shaft
ZTA-2-DPU	0 – 2.000 N	0.001 N	0 – 200.0 gf	0 – 7.00 ozf	M6
ZTA-5-DPU	0 – 5.000 N	0.001 N	0 – 500.0 gf	0 – 18.00 ozf	M6
ZTA-20-DPU	0 – 20.00 N	0.01 N	0 – 2.000 kgf	0 – 4.400 lbf	M6
ZTA-50-DPU	0 – 50.00 N	0.01 N	0 – 5.000 kgf	0 – 11.00 lbf	M6
ZTA-100-DPU	0 – 100.0 N	0.1 N	0 – 10.00 kgf	0 – 22.00 lbf	M6
ZTA-200-DPU	0 – 200.0 N	0.1 N	0 – 20.00 kgf	0 – 44.00 lbf	M6
ZTA-500-DPU	0 – 500.0 N	0.1 N	0 – 50.00 kgf	0 – 110.0 lbf	M6
ZTA-1000-DPU	0 – 1000 N	1 N	0 – 100.0 kgf	0 – 220.0 lbf	M10
ZTA-2000-DPU	0 – 2000 N	1 N	0 – 200.0 kgf	0 – 440.0 lbf	M10
ZTA-5000-DPU	0 – 5000 N	1 N	0 – 500.0 kgf	0 – 1100.0 lbf	M10
ZTA-10k-DPU*	0 – 10 kN	10 N	0 – 1000.0 kgf	0 – 2200.0 lbf	M18 female screw
ZTA-20k-DPU*	0 – 20 kN	10 N	0 – 2000.0 kgf	0 – 4400.0 lbf	M18 female screw

*Note:
No attachment is included with model of measuring range 10 kN and higher. These models do not have measuring shaft, but there is a female thread in place of a measuring shaft.

Depending on the application we have a wide range of clamping tools and clamps for force gauge ZTA-DPU in our program.

Find further information at clamps and testing devices

We have a wide range of test stands, to assure consistent, identical measuring conditions with force gauge ZTA-DPU.

Find further information at test stands

Specifications

Measuring principle:	Bidirectional force sensor with strain gauge
Accuracy:	±0.2 % full scale ±1 digit
Measuring units:	N, kgf (gf), lbf (ozf) selectable
Display:	OLED, 4 digit
Sampling rate:	2000 times/sec
Overload capacity:	Approx. 200 % full scale, symbol flashes at 110 % full scale
Display update rate:	16 times/sec
Plug gauge:	Measuring range up to 500 N: M6 male thread Measuring range 1000 N up to 5000 N: M10 male thread Measuring range 10 kN and 20 kN: M18 female thread
Memory:	Internal memory for max. 1000 values recallable peak – compression/tension
Setpoints:	Programmable Max/Min setpoint with colour-coded indicators in the LED display
Output signal setpoints:	Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)
Output signal:	RS-232 (8, 1, N, 19200), analog ±2 V DC, USB
Temperature range:	0 – 40 °C
Air humidity:	20 – 80 % RH, max.
Power supply:	Rechargeable NiMH batteries (approx. 6.5 h continuous use, approx. 2 h charging time) and/or 100 – 240 V AC adapter and two adapters
Housing material:	Die-cast aluminium
Dimensions:	191 x 75 x 34 mm (LxWxH)
Load cell:	See dimensions
Weight, net (gross):	Approx. 490 g

Additional functions in comparison to standard unit ZTS

Force-displacement measurement:	In combination with a test stand with linear scale force displacement measurements are possible
Memory:	Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
High low output:	2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
Extended peak mode:	Indication of two peak values per measurement

Specifications subject to change without notice!

Standard Accessories

Force Logger
USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “Force Logger” for data transfer

ADW-6010 - AC Adapter
AC adapter for 100 – 240 V AC
Order number: ADW-6010

Inspection Certificate
Delivery includes a manufacturers inspection certificate free of charge
Inspection Certificate

Standard Attachment up to 500 N

A-1 and S-1 Small Hook
Aluminium, M6, measuring range up to 100 N
Order number: A-1
Steel, M6, measuring range from 100 N to 500 N
Order number: S-1

A-2 and S-2 - Flat Tip
Aluminium, M6, Ø 13 mm, measuring range up to 100 N
Order number: A-2
Steel, M6, Ø 16 mm, measuring range from 100 N to 1000 N
Order number: S-2

A-3 and S-3 - Conical Tip
Aluminium, M6, 85°, measuring range up to 100 N
Order number: A-3
Steel, M6, 85°, measuring range from 100 to 1000 N
Order number: S-3

A-4 and S-4 - Chisel Tip
Aluminium, M6, 85°, measuring range up to 100 N
Order number: A-4
Steel, M6, 85°, measuring range from 100 N to 1000 N
Order number: S-4

A-5 and S-5 - Notched Tip
Aluminium, M6, 90°, measuring range up to 100 N
Order number: A-5
Steel, M6, 90°, measuring range from 100 N to 1000 N
Order number: S-5

A-6 and S-6 - Extension Shaft
Aluminium, M6, 80 mm, measuring range up to 100 N
Order number: A-6
Steel, M6, 100 mm, measuring range from 100 N to 1000 N
Order number: S-6

A-7 and S-7 - Large Hook
Aluminium, M6, measuring range up to 100 N
Order number: A-7
Steel, M6, measuring range from 100 N to 1000 N
Order numbr: S-7

A-8 and S-8 - Y-Hook
Aluminium, M6, measuring range up to 100 N
Order number: A-8
Steel, M6, measuring range from 100 N to 1000 N
Order number: S-8

Standard Attachment 1000 N up to 5000 N

B-1 - Small Hook
Steel, M10
Order number: B-1

B-2 - Flat Tip
Steel, M10, Ø 23 mm
Order number: B-2

B-3 - Conical Tip
Steel, M10, 85°
Order number: B-3

B-4 - Chisel Tip
Steel, M10, 85°
Order number: B-4

B-5 - Notched Tip
Steel, M10, 85°
Order number: B-5

B-6 - Extension Shaft
Steel, M10, 100 mm long
Order number: B-6

Accessories (optional)

SW-21 - Force Recorder Light
Force Recorder Light Info (PDF)
Software for data acquisition by USB output
– Force-time graph
– Force gauge function setting
– Data storage as CSV file
Requirements: Microsoft Windows 8.1/10/11
Order number: SW-21

SW-22 - Force Recorder Standard
Force Recorder Standard Info (PDF)
Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Windows 8.1/10/11
Order number: SW-22

SW-23 - Force Recorder Professional
Force Recorder Professional Info (PDF)
Additional function in comparison to Force Recorder Light
– 5 graphs at maximum can be displayed in a table
– Force-displacement graphing (possible only in combination with a test stand with linear
scale)
Requirements: Microsoft Windows 8.1/10/11
Order number: SW-23

SW-26 - Force Recorder Plus
Force Recorder Plus Info (PDF)
Software for Data acquisition by USB output:
– 10 graphs at maximum can be displayed in a table
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Windows 8.1/10/11
Order number: SW-26

SW-13 - Force Logger Plus
Force Logger Plus Info (PDF)
Software for Data acquisition by USB output:
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Windows 8.1/10/11
Order number: SW-13

Clamping Tools
Depending on the application we have a lot of clamping tools and clamps for force gauge ZTA-DPU in our programm.
You can find further information at clamps and testing devices

40018I - Accumulator
Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I

Calibration Certificate
Calibration certificate with calibration report is optional available.

Connecting Cables (optional)

CB-108 - Connecting Cable analog
Connecting cable for analog output, for connection to a line recorder.
Length approx. 3 m
Order number: CB-108

CB-208 - Connecting Cable RS-232
Connecting cable for RS-232 output with sub D 9 female, for connection to PC.
Length approx. 3 m
Order number: CB-208

CB-508 - Connecting Cable MX
Connecting cable for force gauge with test stand (Series MX) to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order number: CB-508

CB-528 - Connecting Cable MX2, EMX
Connecting cable for force gauge ZTA-DPU with test stand (Series MX2 and EMX) to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order Number: CB-528

CB-718 - Connecting Cable EMX (firmware 2.0 or later), MX2-FA
Connecting cable for force gauge ZTA-DPU with test stand (series EMX-FA and MX2-FA) to enable force-displacement measurement.
Length approx. 1.5 m
Order number: CB-718

CB-728 - Connecting Cable EMX-FA (firmware earlier than 2.0)
Connecting cable for force gauge ZTA-DPU with test stand (EMX-FA) to enable force-displacement measurement.
Length approx. 1.5 m
Order number: CB-728

CB-808 - Connecting Cable trigger input
Connecting cable for trigger input (input signal from an external device e. g. electronic switch to stop the measurement)
Order number: CB-808

CB-908 - Connecting Cable with open ends
Connecting cable with open ends (37-pin) for all available output signals to connect an unique device to force gauge ZTA-DPU.
Order number: CB-908
