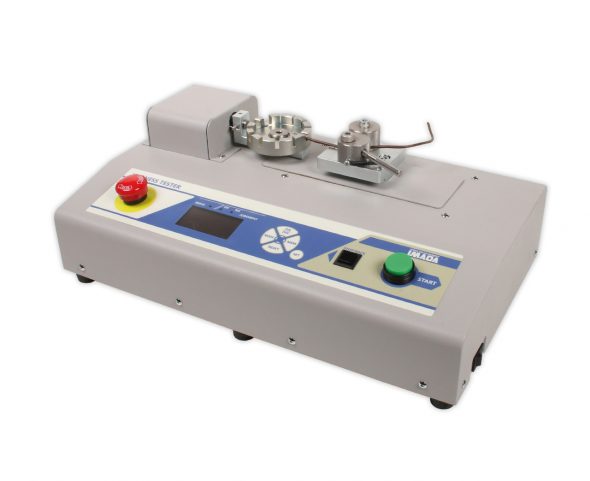

Test Stand ACT-1000N

capacity max. 1000 N

Motorized wire pull tester for soldered and solderless wire terminals, crimped connectors and similar wire terminations

Rugged desktop device with integrated force sensor

Crimp tester with 12 different slots for popular wire strength

CE mark
Categories: ,
Print page Print page

Special Features


Test stand ACT-1000N for testing accordance UL486A-486B and JIS C2805 standards

For wires with diameter between 1 up to 8 mm

Terminal grip with 12 slots from 1 up to 8 mm

2 selectable modes:
– Break Mode: to capture peak force
– Keep Mode: to apply the adjusted force for a specified time

To store test conditions for 25 samples (name, mode, speed, force)

Internal memory for recall readings at the display or transfer to a PC with software free of charge

Programmable high/low setpoints for go/no-go testing with color-coded indicators (orange, green, red) in the LED display and relay output

Standard Features


Max. capacity 1000 N

Available Models

ModelCapacityResolutionSpeed mm/min
ACT-1000N0 – 1000 N1 N10/25/50/100
ACT-1000N-V3000 – 1000 N1 N25/50/100/300

We recommend the low-cost test stand LH-500N alternatively.

Specifications

Capacity:1000 N
Resolution:1 N
Accuracy:±0.5 % full scale ±1 Digit
Wire diameter:1 – 8 mm
Terminal grip slot:1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 6, 7 and 8 mm
Sampling rate:2000 times/sec
Selectable units:N, kgf, lbf
Stroke:50 mm
Sample length:100 mm and longer
Overload protection:150 % FS* (symbol flashes at 110 %)
Output signal:USB, RS-232
Power supply:100 – 240 V AC
Temperature range:0 – 40 °C
Air humidity:80 % RH max.
Dimension:400 x 240 x 150 mm (LxWxH)
Weight:Approx. 11 kg

Specifications subject to change without notice!

Standard Accessories

  1. ACT Logger

    Software ACT LoggerUSB cable approx. 1.5 m long, CD-ROM with USB-drive and software “ACT Logger” for data transfer.


Accessories (optional)

  1. ACT-T-01 - Ring Terminal Jig

    Ring terminal jig ACT-T-01

    with 3 pins (Ø 3, 5 and 8 mm), as well as a M4 female thread.
    Order number: ACT-T-01


  2. ACT-T-02 - Rod Terminal Jig

    Rod terminal jig ACT-T-02

    for small terminals.
    Order number: ACT-T-02


Dimensions

Dimensions of test stand ACT-1000N for download.
Drawing (PDF)
Delivery Includes

Test stand ACT-1000N with force gauge and clamps, 1 CD-ROM with USB-driver and simple software for data transfer, operating manual in English
